Commercial Concrete
Swan's Concrete Products manufactures a range of commercial precast concrete including light pole bases, concrete barriers and concrete pads. We enjoy a challenge so contact us with your commercial precast concrete project needs and ideas.
Commercial concrete precast products include:
Light Pole Bases
| Product |
Description |
PDF |
| 18” OD Light Pole Base, custom height |
na |
CAD Drawing |
| 24” OD Light Pole Base, custom height |
na |
CAD Drawing |
| 18” OD Sign Bases, custom height |
na |
CAD Drawing |

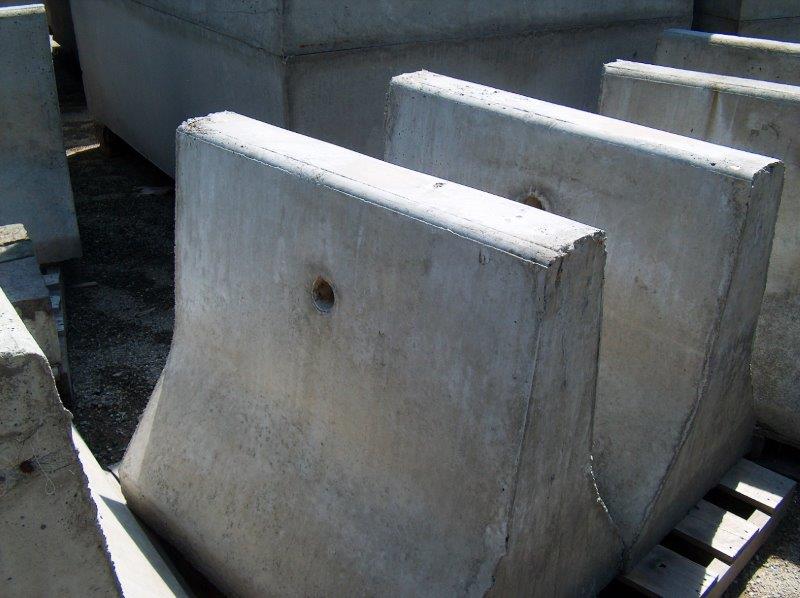

Concrete Barriers
| Product |
Description |
PDF |
| BARR-02 |
2’ wide Jersey Barrier with 2’ base, 2’8” H, 800 lbs. |
CAD Drawing |
| BARR-03 |
3’ wide Jersey Barrier with 2’ base, 2’8” H, 1200 lbs |
CAD Drawing |
| BARR-04 |
4’ wide Jersey Barrier with 2’ base, 2’8” H, 1600 lbs |
CAD Drawing |
| BARR-05 |
5’ wide Jersey Barrier with 2’ base, 2’8” H, 2000 lbs |
CAD Drawing |
| BARR-10 |
10’ wide Jersey Barrier with 2’ base, 2’8” H, 4000 lbs. |
CAD Drawing |
| BARR-RENT |
Jersey Barrier Rental |
CAD Drawing |
Thrust Block
| Product |
Description |
PDF |
| CURB-THRUST |
Thrust Blocks, 2’x7”x 18”, 260 lbs |
CAD Drawing |
Generator Pads (See also “Custom Pads”)
| Product |
Description |
PDF |
| G’EN-3x4 |
Generator Pad 3’ x 4 |
CAD Drawing |
| GEN-3x5 |
Generator Pad 3’ x 5’ |
CAD Drawing |
| GEN-4x8 |
Generator Pad 4’ x 8’ – Made to order |
CAD Drawing |
Propane Tank Pads
| Product |
Description |
PDF |
| PTP-24 |
24” Round Propane Tank Pad, 70 lbs |
CAD Drawing |
| PTP-28 |
28” Round Propane Tank Pad, 110 lbs |
CAD Drawing |
| PTP-30 |
30” Round Propane Tank Pad, 130 lbs |
CAD Drawing |
| PTP-4x8x20 |
Propane Tank Pads, 20” x 8” x 4”, 65 lbs |
CAD Drawing |
| PTP-4x8x30 |
Propane Tank Pads, 30” x 8” x4”, 85 lbs |
CAD Drawing |
| PTP-0500 |
500 gallon Propane Tank Pad (above ground) 1,185 lbs |
CAD Drawing |
| PTP-1000 |
1000 gallon Propane Tank Pad (above ground) 3,336 lbs. |
CAD Drawing |
Concrete Decorative Planter
| Product |
Description |
PDF |
| Large Decorative Concrete planter. |
Available in 29”, 36” & 41” OD and 2’ high. Available in plain concrete-ready to paint, or exposed aggregate finish |
CAD Drawing |
Postal Pads
| Product |
Description |
PDF |
| PP-1070T |
Jumbo Collection Box 1070T |
CAD Drawing |
| PP-48x48-SINGLE |
Postal Pad (NDCBU) For single box, 1580 lbs. |
CAD Drawing |
| PP-48x82-DBL |
Postal Pad (NDCBU) For two boxes, 2700 lbs. |
CAD Drawing |
| PP-LARGE |
Large Postal Pad |
CAD Drawing |
| PP-RELAY |
Relay Box Pad |
CAD Drawing |
| PP-SMALL |
Small Postal Pad |
CAD Drawing |
Retaining Walls
| Product |
Description |
PDF |
| RETAWA |
Split Faced Retaining Wall, 4000 lbs. |
CAD Drawing |
Man Hole Risers
| Product |
Description |
PDF |
| MHR-6 |
Man Hole Riser, 41” OD, 24” ID, 6”H, ~ 450 lbs. |
CAD Drawing |
| MHR-4 |
Man Hole Riser, 41” OD, 24” ID, 4”H, ~295 lbs. |
CAD Drawing |
| MHR-8 |
Man Hole Riser, 41” OD, 24” ID, 6”H, ~ 590 lbs. |
CAD Drawing |
| MHR-12 |
Man Hole Riser, 41” OD, 24” ID, 12”H, ~ 895 lbs. |
CAD Drawing |
Parking Bumpers
| Product |
Description |
PDF |
| BUMP-6 |
6’ parking bumpers |
CAD Drawing |
